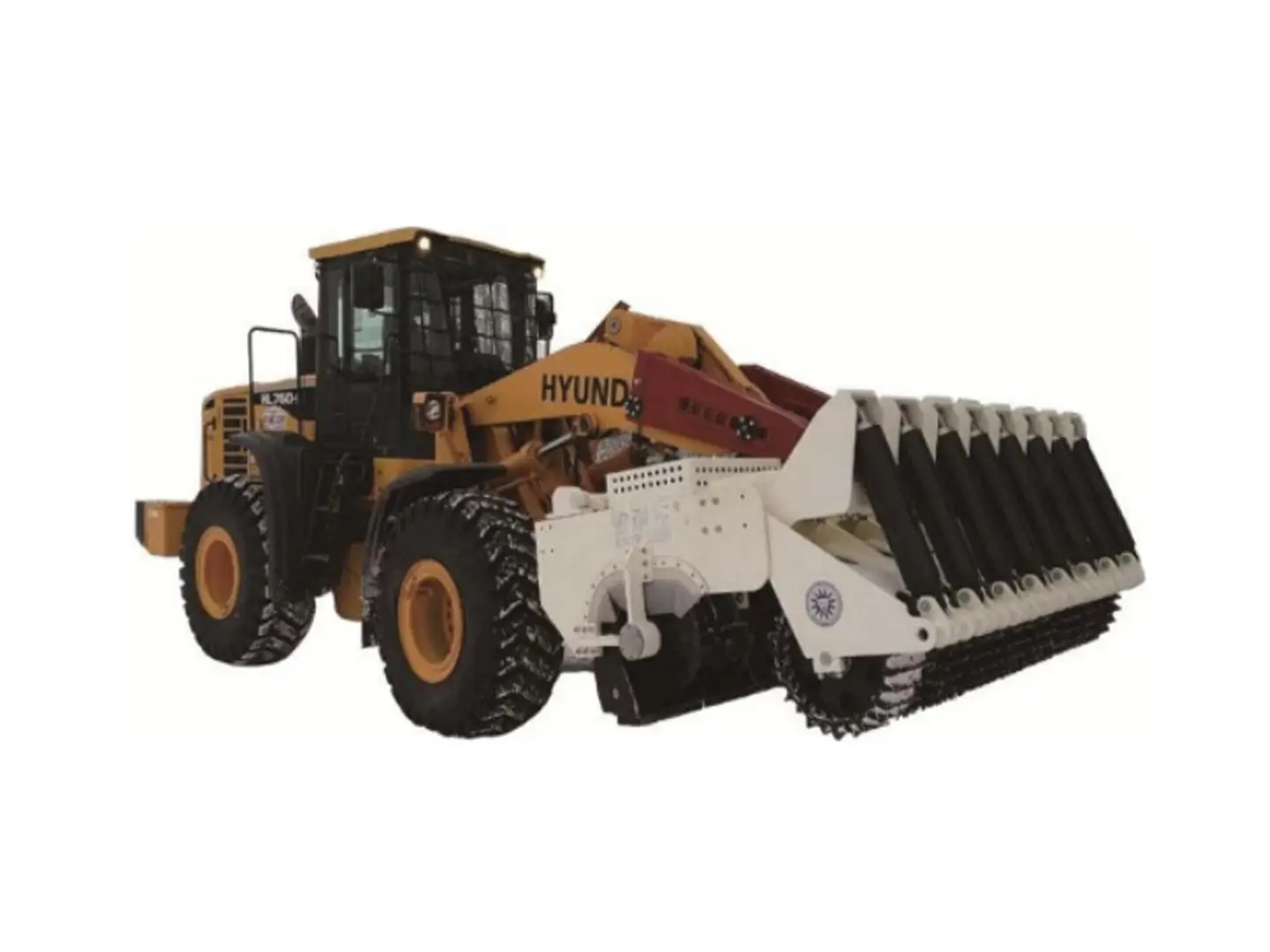

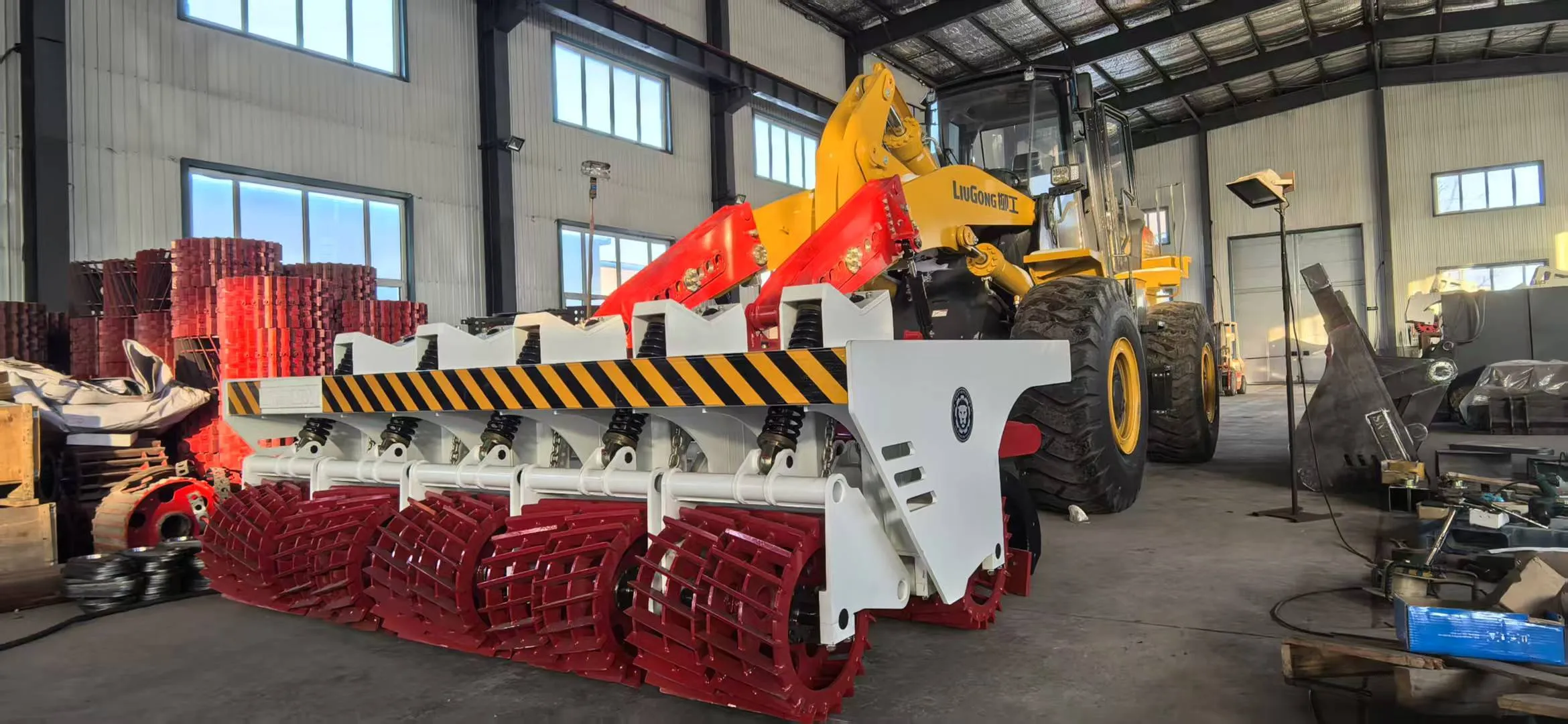

ZCSP-3.0-5T Double-Wheel Heavy-Duty Ice Breaker

Description

Overall machine dimensions (length × width × height): 2160mm × 3160mm × 1220mm (excluding loader connection dimensions)

Total machine weight (excluding loader): 5300 kg

Compatible models: Loaders with a capacity of 5 tons and above

Number of contour ice-breaking wheel sets: 12 sets in double rows

Front and rear ice-breaking wheel arrangement: staggered arrangement, 100% coverage

Icebreaker wheel dimensions (diameter × width): 800 × 415 mm

Ice-breaking tooth installation method: hollow welding type

Icebreaker wheel shock absorption device: polyurethane bushing

Number and arrangement of compression spring mechanisms: 6 sets of compression spring mechanisms, not tension springs; hydraulic cylinder structure design; shared by the front and rear ice-breaking wheel mechanisms.

Number of limit levers and maintenance method: 12 sets, plate sliding structure design, maintenance-free, non-chain connection.

Icebreaker wheel axle and icebreaker wheel support arm connection method: split axle seat clamping type, split seat gap 0.5mm

The overall paint finish on the equipment is clean, tidy, and free of smears, rust, or touch-up paint. Plated parts are clean and free of dents or damage; there are no exposed unplated areas.

Rigid connections in the equipment should be securely joined, and moving parts should be free from jamming, obstruction, or scraping.

The welded parts of the equipment should be firm, stable and flat, and the welds should not have defects such as incomplete welds, false welds, or slag inclusions.

Ice-breaking teeth material: alloy steel

The icebreaker requires repeated crushing operations, including reversing. It has 412 blades, with each blade measuring 415mm in length.

Cotter pins must not be used to fix the front and rear connecting shafts of the compression spring, nor should cotter pins be used to fix the front and rear connecting shafts of the tie rod.

Body connection method: Clamp-arm type body connection

Target areas: Heavily compacted snow, compacted snow, and icy roads.

Functions: Crushing, stripping

Equipment operating width: 3000mm

Recommended maximum operating speed: 30 km/h

Ice-breaking system road surface conformation capability: 150mm

Crushing capacity: 5-50mm

Icebreaker wheel bearing installation method: built-in enclosed bearing with lubrication function, non-mounted bearing.

Does the icebreaker wheel float independently? Yes

Icebreaker wheel floating height: 150mm

Ice-breaking pressure during operation: Adjustable
