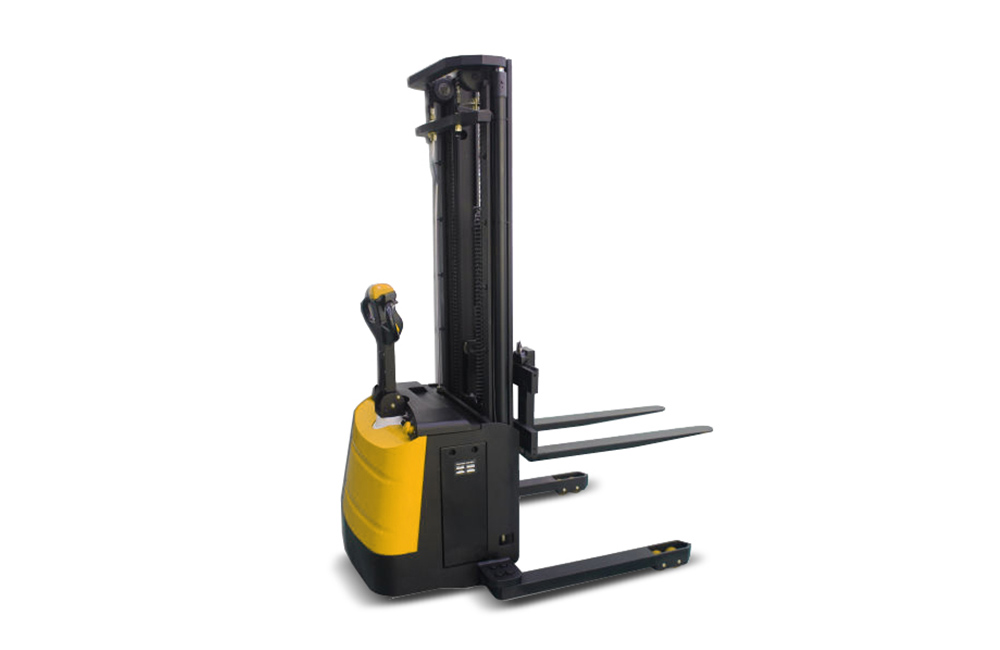

CDD12J-KLl
• AC Driving system, No carbon brusn
• Automatically speed decelerates while at high lifting position.
Description
Key Advantages:
• AC Driving system, No carbon brush
• Automatically speed decelerates while at high lifting position-
• Steering automatic deceleratiom
| Model | CTD16-960HLI |
|---|---|
| Type | Straddle |
| Mast type | Full free 3-stage |
| Loading capacity | 3500 lbs |
| Load center | 24.00 In |
| Operating type | walkie |
| Wheels type | PU |
| Lift height | 177.2/185.0/196.9/212.6 In |
| Max.extend height | 196.7/204.7/216.5/236.2 In |
| Mast lowered height | 81.2/83.9/87.8/93.0 In |
| Overall length | 75.2 In |
| Overall width | 31.5 In |
| Min.Turning radius | 59 In |
| Min.Asie width for pallets 1000×1200 | 79.9 In |
| Travel speed,laden/unladed | 3.1/3.4 mph |
| Lift speed,laden/unladed | 25.6/35.4 in/s |
| Battery voltage/capacity | 24/270 V/Ah |
| Controller | ZAPI |
| Battery weight | 539.0 lbs |
| Service weight with battery | 3320.0 lbs |
